77 London

77 London is a prestigious nightclub located within the Bo Street Hotel in Mayfair. The brief was to transform the compact, asymmetrical basement space into a high-performance, visually striking club, capable of competing with London’s leading clubs in technical performance and audience impact.

The system needed to deliver world-class audio clarity and impact for DJs, immersive lighting, and video to create a distinct visual identity, and seamless integration within strict structural and spatial constraints. The ambition was clear: create a premium, technically exceptional nightclub experience without compromise, despite the limitations of the footprint.

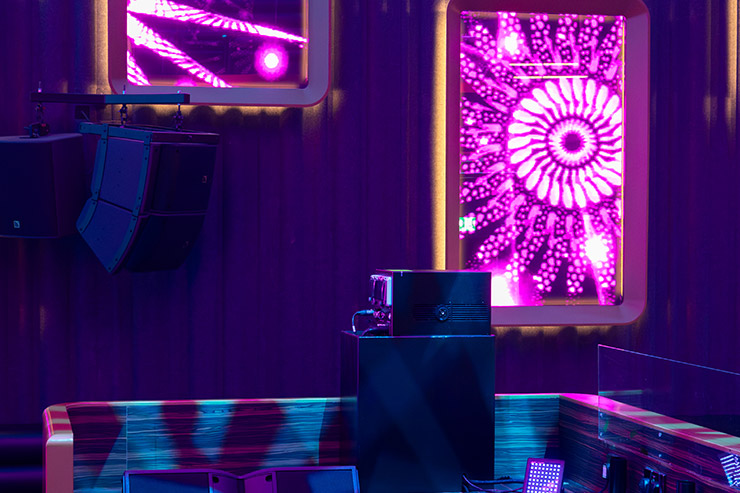

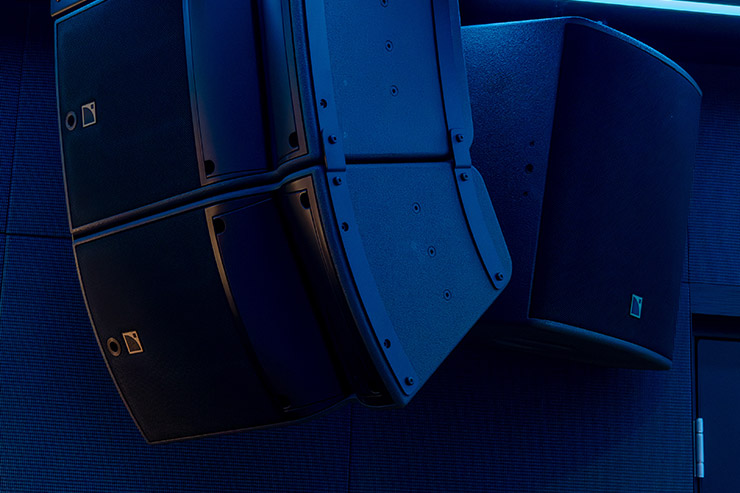

Audiovisual technology at 77 London is heavily driven by a precision-engineered audio system designed to overcome the constraints of a compact, asymmetrical basement space. At its core is a four-point L-Acoustics system, centred around eight A10i loudspeakers. This configuration was specifically chosen to distribute sound evenly throughout the venue, rather than relying on a traditional front-facing system. By positioning speakers around the room, the design ensures consistent coverage across the dancefloor, DJ booth, and VIP seating areas.

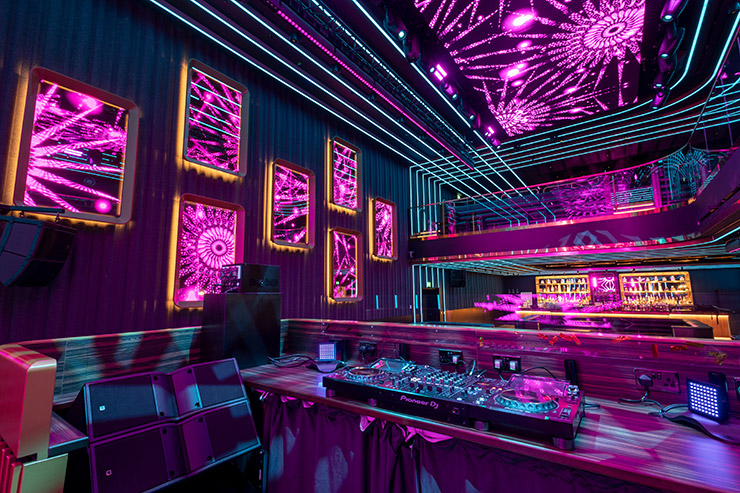

Low-frequency performance is delivered by KS21i subwoofers, which are clustered and integrated into the DJ booth to maximise impact while maintaining spatial efficiency. Additional SB10 subwoofers are discreetly built into seating and balcony joinery, providing evenly distributed bass without disrupting the venue’s aesthetics. Within the DJ booth itself, a dedicated system of KARA II speakers and SB18i subwoofers ensures accurate monitoring for performers.

The system is powered by LA4X amplifiers and managed using L-Acoustics P1 processors, with overall system control handled via Q-SYS. This allows operators to switch between audio presets depending on room configuration, such as opening the dancefloor or adapting for seated events.

The audio system produces consistent sound pressure levels, high clarity, and powerful bass throughout the venue, eliminating dead zones and acoustic imbalances. It delivers a “rider-friendly,” world-class listening environment, enabling DJs and performers to connect effectively with the audience while maintaining exceptional sound quality in a challenging architectural space.

Lighting at 77 London is designed to be both immersive and highly adaptable, supporting a wide range of event types from club nights to brand activations. The system includes 24 Robe PAINTE moving heads, 24 Robe Tetra2 linear fixtures, and eight CHAUVET Color STRIKE M strobes, complemented by Laserworld lasers positioned around the DJ booth.

Due to the venue’s asymmetrical layout and L-shaped balcony, a conventional lighting design would have resulted in an unbalanced visual experience. To address this, the lighting system has been carefully engineered to create symmetry from the audience’s perspective, even where the architecture itself is uneven. Fixtures are strategically positioned along both sides of the room, including beneath the balcony and on suspended truss structures.

The lighting is controlled using a GrandMA3 console, enabling precise programming and synchronisation with audio and video content. The system is also modular, meaning lighting configurations can be adjusted depending on the requirements of each event, allowing for different moods, intensities, and visual styles.

The lighting system delivers dynamic, synchronised visual effects that enhance the energy of the venue. It enables rapid changes in atmosphere, from subtle ambient lighting to high-intensity strobe and beam effects. This flexibility ensures that each event can have a distinct visual identity, increasing audience engagement and reinforcing the immersive club experience.

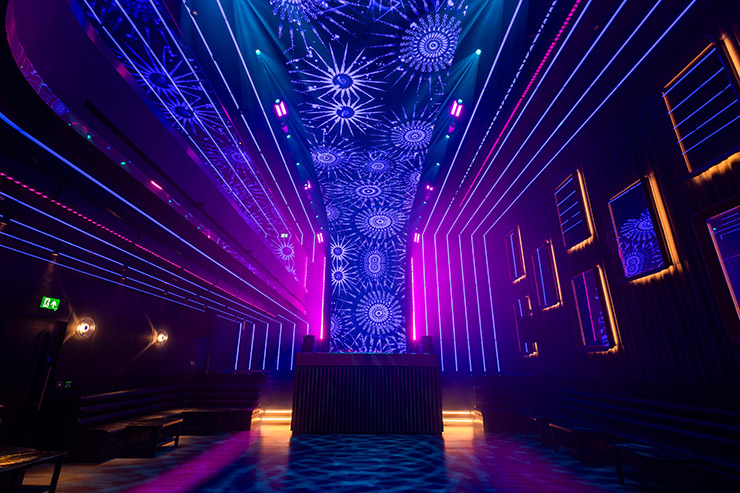

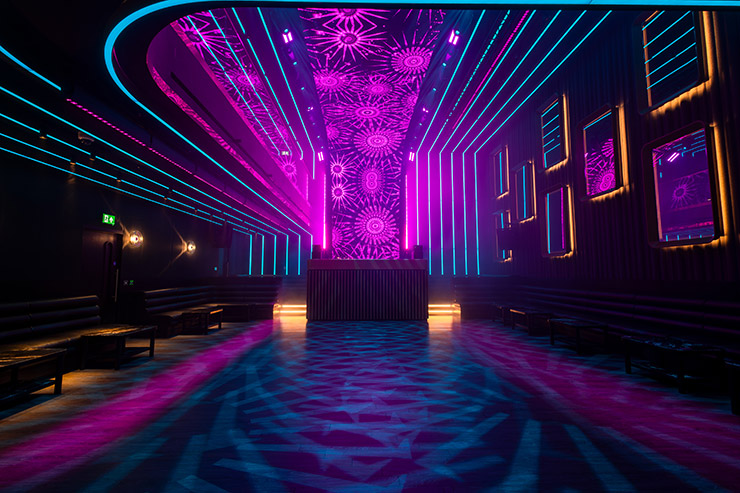

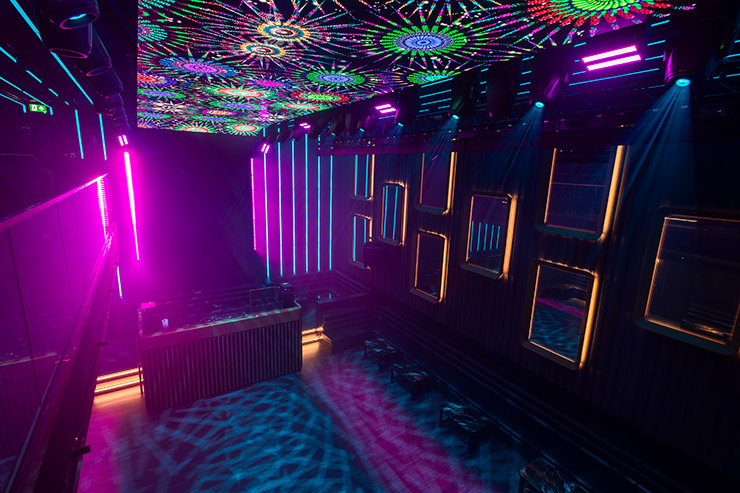

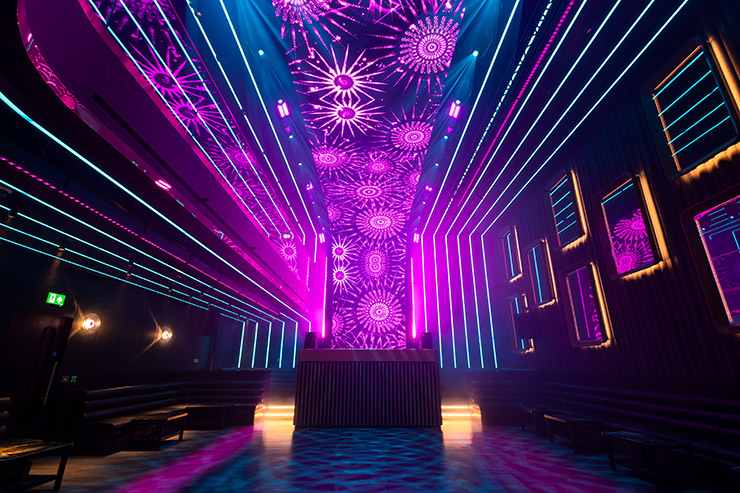

Video technology is a defining feature of 77 London, centred around a custom curved LED wall that wraps behind the DJ booth and extends across the ceiling above the dancefloor. This large-scale installation acts as the visual focal point of the venue, transforming the space into an immersive digital environment.

The LED structure was engineered in collaboration with Lucid Creates and supported by a bespoke steel substructure, allowing it to be safely suspended within the constraints of the existing building. Additional LED panels are installed across the venue, and LED strip lighting is integrated throughout, creating a cohesive visual system.

Content is controlled using Resolume video servers and MADRIX (LUNA 16) controllers, enabling precise mapping of visuals across the curved and irregular surfaces. Visual content is specifically designed for the space, using 3D animation and high-resolution filmed footage, mapped to the unique geometry of the LED installation. This allows for effects such as depth illusion, where visuals appear to extend out into the room.

The video system creates a high-impact, immersive visual experience, drawing the audience’s attention toward the DJ and enhancing the overall atmosphere. Synchronised visuals, combined with lighting and audio, produce a multi-sensory environment that strengthens audience engagement and establishes a distinctive visual identity for the venue.

The truss system at 77 London is a critical structural and visual component, designed specifically to overcome the challenges of the venue’s asymmetrical basement layout and L-shaped balcony. Traditional fixed truss solutions would have resulted in an unbalanced lighting design, so a custom motorised (kinetic) truss system was developed to create symmetry from the audience’s perspective.

This system allows sections of truss to be lowered into position, aligning lighting fixtures evenly across the space despite the irregular architecture. By doing so, it ensures that the visual focus remains centred on the DJ booth and dancefloor, maintaining a cohesive and balanced look throughout the venue.

The truss is supported by a bespoke steel substructure, engineered in collaboration with Lucid Creates and Momentum Engineering. This framework is fixed to the concrete slab above and designed to safely support both the lighting fixtures and integration with the suspended LED installation. Given the constraints of working beneath an operational luxury hotel, the system required detailed load calculations, structural validation, and off-site testing prior to installation.

Additionally, all components had to be transported via a restricted freight elevator, meaning the truss and associated systems were designed in modular sections to meet size limitations without compromising strength or performance.

The truss system provides a flexible and structurally secure platform for lighting and AV integration, enabling visual symmetry, adaptability, and safe operation. It ensures that the venue maintains a high production standard, even within a highly constrained architectural environment.

Special effects at 77 London are designed to heighten energy levels and create impactful, memorable moments that enhance both DJ performances and audience engagement. Alongside lighting and video integration, the venue incorporates CO₂ jet systems, Laserworld lasers, and high-intensity strobe fixtures to deliver a dynamic, multi-sensory experience.

The CO₂ jets are a key feature, positioned strategically around the DJ booth and dancefloor. These jets release controlled bursts of pressurised carbon dioxide, producing thick white plumes that shoot upwards in sync with key musical moments such as drops or transitions. In a compact venue like 77, this effect is particularly powerful, as it creates an immediate physical and visual impact that the audience can both see and feel. The cooling sensation from the CO₂ also enhances comfort during high-energy periods on the dancefloor.

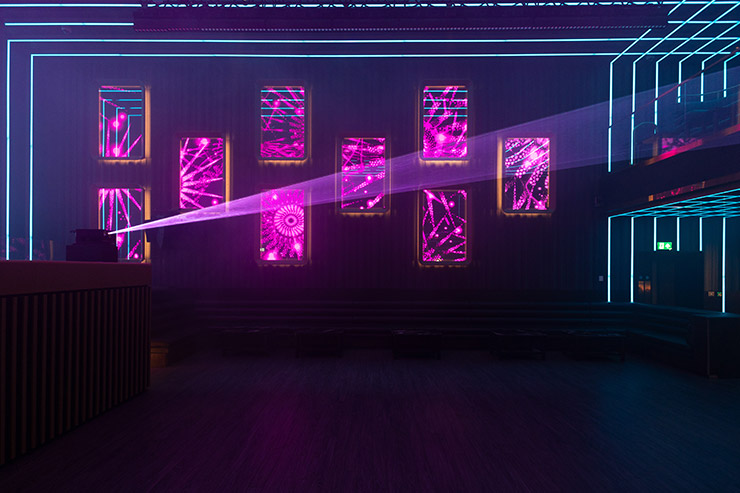

Laser systems add another layer of immersion, projecting sharp beams across the space and interacting with haze and CO₂ effects to create depth and movement. Meanwhile, CHAUVET Color STRIKE M fixtures provide strobe and blinder effects, delivering short bursts of intense light that amplify the rhythm and pacing of performances.

The primary challenge at 77 London was spatial. The venue’s compact, asymmetrical basement footprint created complex acoustic, structural, and visual constraints. Delivering super-club performance in a room where every millimetre mattered required detailed modelling, structural engineering, and uncompromising system optimisation.

This was not a conventional nightclub install. It was a precision build.

The defining feature – a suspended curved LED centrepiece weighing over 2500kg – had to be safely integrated into the existing ceiling slab underneath an operational luxury hotel. Independent structural assessments, load calculations, and certified fixing solutions were undertaken to ensure absolute compliance and long-term integrity. Fabricated in collaboration with Lucid Creates, the structure was pre-tested off-site before installation, eliminating uncertainty and safeguarding programme timelines.

Acoustically, the room’s asymmetry demanded careful control to avoid uneven coverage and low-frequency build-up. Using L-Acoustics Soundvision modelling, we engineered a four-point A10i system with KS21i subwoofers and precisely positioned fills. The result is consistent SPL distribution across the dancefloor, DJ booth, and VIP areas, delivering impact and clarity typically associated with significantly larger venues.

Visually, traditional lighting geometry simply would not work. To overcome this, we designed and engineered a custom winched lighting bar system capable of dropping into symmetrical alignment from the audience’s perspective, despite the irregular

architecture. This solution preserves visual balance while maintaining flexibility for evolving show requirements.

All audio, lighting and video systems were unified through a Q-SYS control backbone, ensuring seamless integration, intuitive operation, and future scalability. Close coordination with hotel stakeholders ensured the installation was delivered efficiently and without disruption to wider operations.

We approached every challenge with detailed simulation, engineering rigour, and collaborative execution. The result is a technically uncompromised nightclub environment built within one of the most constrained spatial venues in central London.

77 London demonstrates how technical precision and creative design can transform a constrained space into a benchmark nightclub environment.

This project was not about scale. It was about excellence within unforgiving spatial constraints. In a compact, asymmetrical venue, we delivered immersive, high-impact audio, a visually iconic LED centrepiece, and a flexible lighting system engineered specifically for the architecture. Nothing was left to chance; every design decision was informed by modelling, testing, and structural validation.

The installation elevates guest experience while meeting the expectations of international DJs and promoters. The L-Acoustics system provides clarity and consistency typically associated with much larger venues, while the suspended curved LED feature creates a distinctive visual identity that sets 77 London apart in a competitive market.

Importantly, this project demonstrates innovation through integration. The winched lighting bar solution solves a spatial problem in an elegant way. The structural engineering behind the suspended LED ensures spectacle without compromising safety. The Q-SYS backbone unifies control, allowing seamless operation and future scalability.

77 London is an example of how thoughtful AV design can redefine what is possible within a restricted footprint. It proves that world-class performance is not dependent on size, but on precision, planning, and expertise.

Beyond its technical achievement, the project illustrates how high-performance nightclub design can be delivered responsibly within complex urban environments. Integrating a 2500kg suspended feature and full-scale club system beneath an operational luxury hotel required not only engineering precision, but disciplined stakeholder coordination and compliance management.

The project sets a benchmark for how immersive AV environments can coexist within mixed-use hospitality developments without compromise to safety, structural integrity, or neighbouring operations.

77 London deserves recognition because it exemplifies what modern nightclub integration should be: technically uncompromising, structurally intelligent, and creatively distinctive. It proves that spatial limitation is not a barrier to excellence—it’s an opportunity for innovation.
